AHB Lite Verification IP

Introduction

Maxvy Technologies AHB Verification IP provides a complete solution for Verification of AMBA 3.0 AHB-Lite protocol v1.0 component of a SOC or ASIC. Maxvy AHB-Lite Verification IP is fully compliant with standard AMBA 3 AHB-Lite Specification. AMBA 3.0 AHB-Lite VIP is supported natively in SystemVerilog and UVM.

Features

  • Fully compliant with AMBA 3.0 AHB-Lite of the ARM specification.
  • Supports AHB Lite Operation.
  • Configurable as a full AHB Lite Master, Slave.
  • Supports Multi-Master and Multi-Slave System(Optional).
  • Supports pipelined operation.
  • Parameterized data and address widths.
  • Supports all transfer types (IDLE, BUSY, NONSEQ & SEQ) and burst transfers (4, 8, 16 bit incrementing and wrapping).
  • Supports controllable wait states.
  • Supports early burst termination.
  • Supports insertion of delays by slave and master.
  • Configuration of lock and unlock transfer.
  • Supports big endian and little endian mode.
  • Supports various error injection and detection.
  • Supports Configurable memory in slave operation.

Architecture

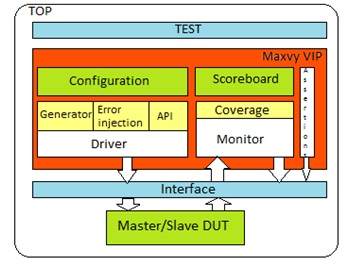

ahb-lite architecture

Usage Model

An AHB Lite DUT in any mode can be verified with single instance of AHB Lite VIP. User needs to configure AHB Lite VIP in appropriate mode depending on the DUT. For AHB Lite Master DUT, Maxvy’s AHB VIP can be configured to behave like either AHB system with multiple masters and slaves or a single slave. Similarly for AHB Slave DUT, it can be configured to behave like AHB system with multiple masters and slaves or a single master.

ahb-lite model

Key Benefits

  • Available in Pure System Verilog and with UVM methodology Support.
  • Unique development methodology to ensure highest levels of quality.
  • Availability of Compliance & Regression Test Suites.
  • 24X5 customer support.
  • Unique and customizable licensing models.
  • Exhaustive set of assertions and coverage points with connectivity example for all the components.
  • Consistency of interface, installation ,operation and documentation across all our VIPs.

Extended Capabilities

  • Supports directed random & fully random tests.
  • Supports Environment configuration of VIP based on the DUT.
  • Includes scoreboard for end to end data integrity check.
  • Monitors & checkers for protocol violations.
  • Coverage model for functional coverage.

Deliverables

  • VIP User’s guide.
  • AHB Lite VIP Encrypted source code.
  • Sample Test bench Top.
  • Sample Scoreboard& Sanity test.
  • Assertions and coverage model.
