MIPI I3C Master RISC-V based subsystem

Description

RISC-V based MAXVY MIPI I3C master interface has been developed to ease sensor system design architectures in mobile wireless products by providing a fast, low cost, low power, two-wire digital interface for sensors. All the basic functionalities of MIPI I3C master has been proved with Microsemi smart fusion 2 creative development board .In addition MAXVY MIPI I3C master supports for both AHB lite and APB Interface.

Block Diagram

RISC-V Based I3C Block diagram

FPGA Board details

  • Name of the board: Microsemi creative development board
  • Family name: Smart fusion2
  • Part number: M2S025-VF0256

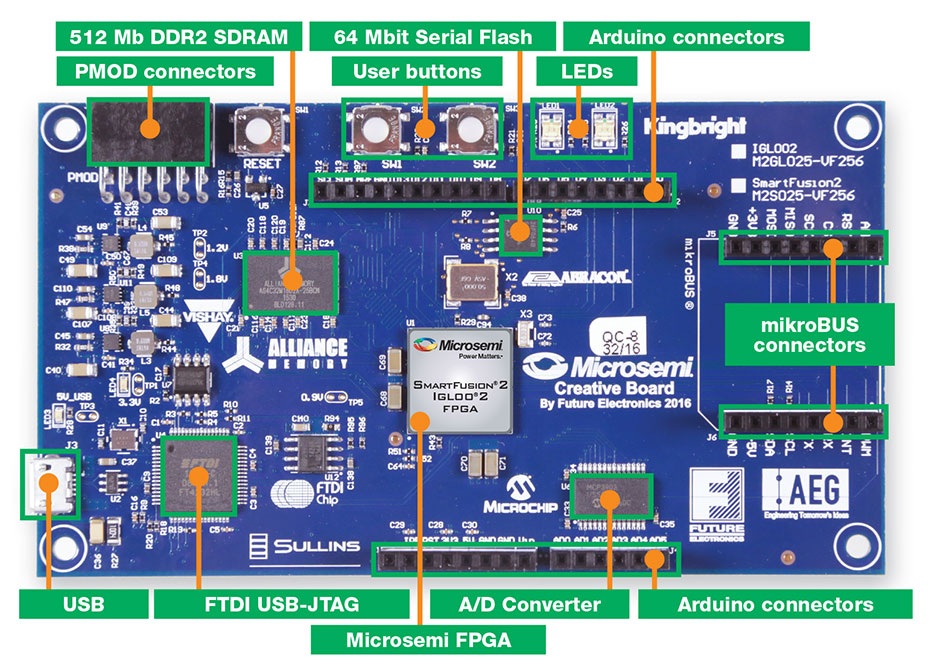

RISC-V Based I3C Board Detail

Prerequisite

MIPI I3C Resource Usage

RISC-V Based I3C Board Detail

Pins used

RISC-V Based I3C Board Detail

Features

  • Dynamic address assignment.
  • Host controller compliance
  • SDA arbitration.
  • Data transfer with and without broadcast.
  • All basic CCC command features.
  • Both push-pull and open drain mode transaction.
  • Private write and read operations.

Applications

  • Mechanical sensing (Gyroscopes, MEMS, etc.)
  • Environmental sensing (Light, pressure, temperature, humidity, etc.)
  • Biometrics (Fingerprinting, glucose, heart rate, breathalyzer, etc.)
  • Communication (Near-field sensors, infrared remotes, etc.)
